ADF Axial flow fan

Retail Price

Market Price

The impeller designed for air-foil impeller and can be adjusted, it is made of aluminium. it is with low noise, high static pressure and high eddiciency. It can run continounslywhen the air reaches 150℃.

Product Category: Axial Flow Fan ADF

Keywords:

Donwload:

Email:

truechen722@gmail.com

Product Inquiry

Structural features

The impeller designed for air-foil impeller and can be adjusted, it is made of aluminium.

it is with low noise, high static pressure and high eddiciency.

It can run continounslywhen the air reaches 150℃.

It can run continuously over half and hour when the air reaches 280℃

Modelrange:no.400-1800,15numbersin total

Air volume range:3883-232884m³/h

Total pressure range:56-1698Pa.

Application: Applicable for exhausting high temperature steam or smoke exhaust etc.

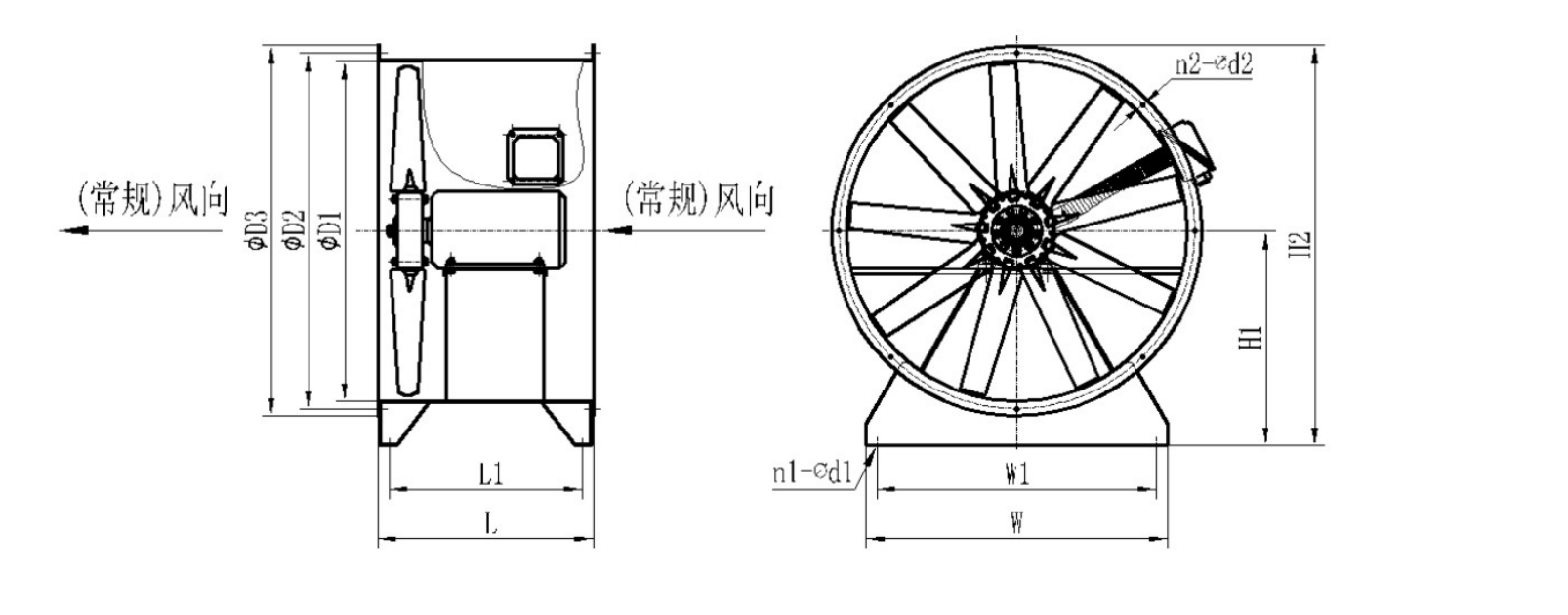

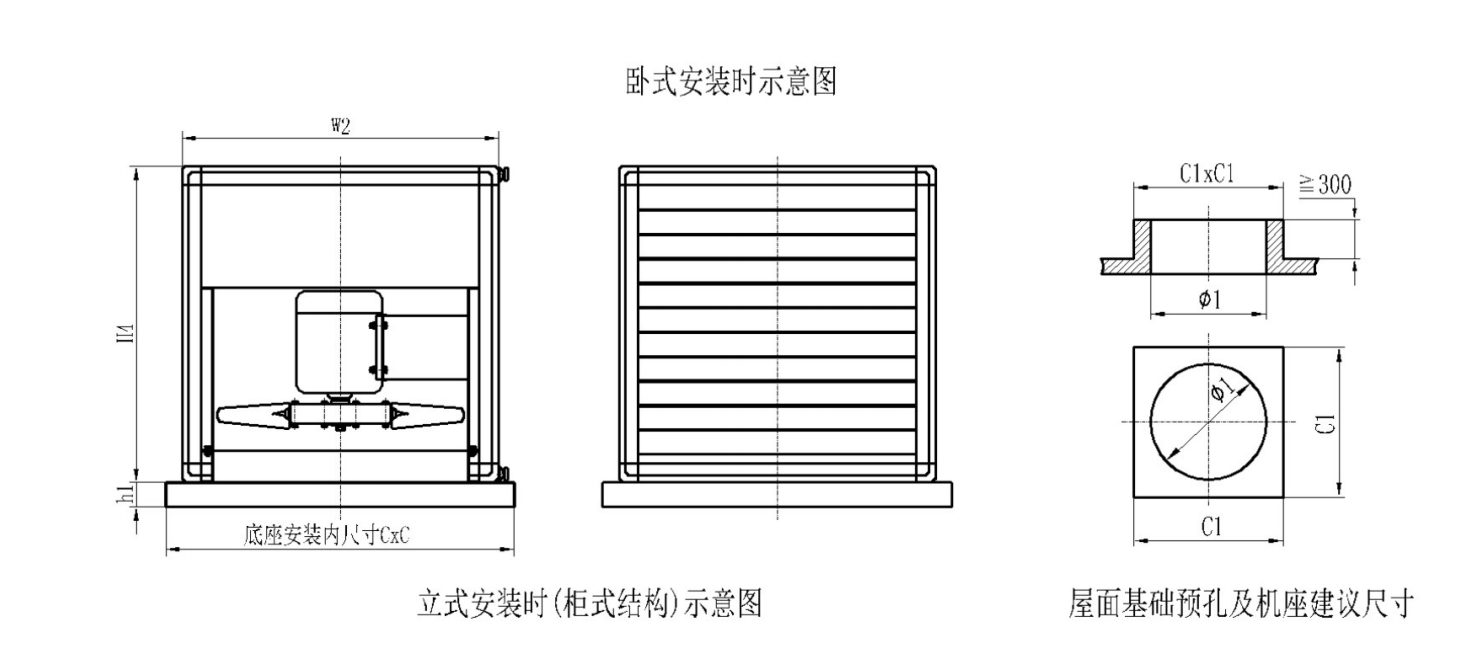

Dimensions

Model	∅D1	0D2	0D3	W1	W2	W	H1	H2	n1-0d1	n2-0d2	H3	H4	h1	C	E	Cl	01(Concrete roof)	01(Steel structure roof)	Length	Anchor spacing	Outlet area (M²)
Model	∅D1	0D2	0D3	W1	W2	W	H1	H2	n1-0d1	n2-0d2	H3	H4	h1	C	E	Cl	01(Concrete roof)	01(Steel structure roof)	L	L1	Outlet area (M²)
ADF400	404	434	464	290	600	350	260	492	4-010	6-08	195	480	60	630	650	≤600	≥430	≥460	275	L-47	0.126
ADF450	454	484	514	340	650	400	290	547	4-012	8-08	265	500	60	680	1000	≤650	≥480	≥510	325	L-47	0.159
ADF500	504	534	564	380	700	440	320	602	4-012	8-08	265	530	60	750	1000	≤720	≥530	≥560	325	L-47	0.2
ADF560	564	594	624	430	760	490	360	672	4-012	8-08	265	550	60	820	1000	≤790	≥590	≥620	365	L-48	0.249
ADF600	604	634	664	460	800	520	385	717	4-014	8-010	265	570	60	900	1000	≤870	≥630	≥660	365	L-50	0.283
ADF630	634	664	694	480	840	540	400	747	4-014	8-010	265	570	60	900	1000	≤870	≥660	≥690	495	L-50	0.316
ADF710	715	749	785	560	910	620	450	843	4-014	10-010	300	680	77	1000	1340	≤970	≥740	≥770	355	L-54	0.396
ADF800	805	839	875	640	1000	700	510	948	4-016	10-010	300	710	72	1100	1340	≤1070	≥830	≥860	470	L-55	0.502
ADF900	905	944	985	740	1100	800	570	1063	4-016	12-010	350	830	80	1200	1650	≤1170	≥930	≥960	540	L-58	0.636
ADF1000	1006	1044	1086	940	1200	1000	620	1163	6-016	14-010	350	910	80	1250	1650	≤1220	≥1030	≥1060	605	L-58	0.785
ADF1120	1120	1160	1200	1060	1320	1120	685	1285	6-016	16-010	350	1030	90	1400	1800	≤1360	≥1150	≥1180	730	L-64	0.985
ADF1250	1250	1290	1330	1170	1450	1250	760	1425	6-018	20-010	350	1120	90	1550	1800	≤1510	≥1280	≥1310	835	L-69	1.227
ADF1400	1400	1440	1480	1320	1600	1400	840	1580	6-018	20-010	350	1230	90	1700	2200	≤1660	≥1430	≥1460	995	L-75	1.54
ADF1600	1600	1650	1700	1500	1900	1600	950	1800	6-018	22-012	480	1400	120	1900	2400	≤1860	≥1630	≥1670	995	L-76	2.01
ADF1800	1800	1850	1900	1700	2100	1800	1050	2000	6-020	26-012	480	1500	120	2100	2600	≤2060	≥1830	≥1870	1365	L-80	2.545

Performance Chart

Model	∅D1	0D2	0D3	W1	W2	W	H1	H2	n1-0d1	n2-0d2	H3	H4	h1	C	E	Cl	01(Concrete roof)	01(Steel structure roof)	Length	Anchor spacing	Outlet area (M²)
Model	∅D1	0D2	0D3	W1	W2	W	H1	H2	n1-0d1	n2-0d2	H3	H4	h1	C	E	Cl	01(Concrete roof)	01(Steel structure roof)	L	L1	Outlet area (M²)
ADF400	404	434	464	290	600	350	260	492	4-010	6-08	195	480	60	630	650	≤600	≥430	≥460	275	L-47	0.126
ADF450	454	484	514	340	650	400	290	547	4-012	8-08	265	500	60	680	1000	≤650	≥480	≥510	325	L-47	0.159
ADF500	504	534	564	380	700	440	320	602	4-012	8-08	265	530	60	750	1000	≤720	≥530	≥560	325	L-47	0.2
ADF560	564	594	624	430	760	490	360	672	4-012	8-08	265	550	60	820	1000	≤790	≥590	≥620	365	L-48	0.249
ADF600	604	634	664	460	800	520	385	717	4-014	8-010	265	570	60	900	1000	≤870	≥630	≥660	365	L-50	0.283
ADF630	634	664	694	480	840	540	400	747	4-014	8-010	265	570	60	900	1000	≤870	≥660	≥690	495	L-50	0.316
ADF710	715	749	785	560	910	620	450	843	4-014	10-010	300	680	77	1000	1340	≤970	≥740	≥770	355	L-54	0.396
ADF800	805	839	875	640	1000	700	510	948	4-016	10-010	300	710	72	1100	1340	≤1070	≥830	≥860	470	L-55	0.502
ADF900	905	944	985	740	1100	800	570	1063	4-016	12-010	350	830	80	1200	1650	≤1170	≥930	≥960	540	L-58	0.636
ADF1000	1006	1044	1086	940	1200	1000	620	1163	6-016	14-010	350	910	80	1250	1650	≤1220	≥1030	≥1060	605	L-58	0.785
ADF1120	1120	1160	1200	1060	1320	1120	685	1285	6-016	16-010	350	1030	90	1400	1800	≤1360	≥1150	≥1180	730	L-64	0.985
ADF1250	1250	1290	1330	1170	1450	1250	760	1425	6-018	20-010	350	1120	90	1550	1800	≤1510	≥1280	≥1310	835	L-69	1.227
ADF1400	1400	1440	1480	1320	1600	1400	840	1580	6-018	20-010	350	1230	90	1700	2200	≤1660	≥1430	≥1460	995	L-75	1.54
ADF1600	1600	1650	1700	1500	1900	1600	950	1800	6-018	22-012	480	1400	120	1900	2400	≤1860	≥1630	≥1670	995	L-76	2.01
ADF1800	1800	1850	1900	1700	2100	1800	1050	2000	6-020	26-012	480	1500	120	2100	2600	≤2060	≥1830	≥1870	1365	L-80	2.545
