AE Jet Fan

Retail Price

Market Price

It's easy to be installed because there is no need to duct You can freely control the direction of air current;

Product Category: Jet fan AE

Keywords:

Donwload:

Email:

truechen722@gmail.com

Product Inquiry

Structural features

It's easy to be installed because there is no need to duct
You can freely control the direction of air current;
It has a high efficiency to inhale the around air smoothiy;
It's designed for low-noise and operated quietly;
It's easy to install and repair as its light weight.
Modelrange:No.200-630,6numbers in total
Air volume range:1360-19000m³/h
Total pressure range:120-380Pa
Application: Mainly used for the parking lot and factory to induce the airiness and post airiness

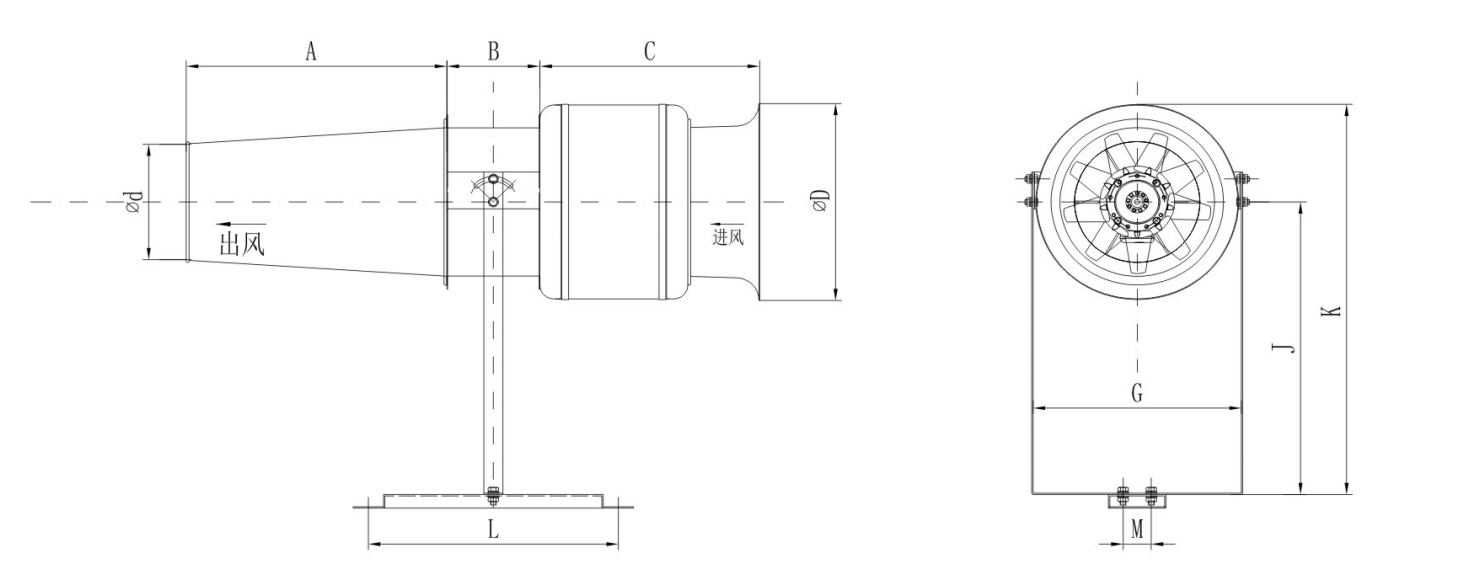

Dimensions

Model	A	B	C	φd	φD	G	J	K	M	L
AE-200	367	137	206	φ185	φ290	300	470	615	40	355
AE-250	474	132	369	φ200	φ321	400	434	595	40	355
AE-315	550	195	420	φ250	φ415	330	434	642	40	355

Model	A	C	D	E	G	J	∅D	H	∅d	4-∅d1
AE-400	330	200	385	436	460	580	∅490	387	∅310	∅10
AE-500	380	200	430	482	560	680	∅590	437	∅410	ø12
AE-630	420	200	510	558	700	820	∅720	513	∅540	∅12

Performance Chart

Model	Rotate Speed (r/min)	Air Volume (m²/h)	Full Pressure (Pa)	Power (kw) kw	Range (m)	Voltage (V)	Frequency (Hz)	Noise dB(A)	Weight (kg)
AE-200	2900	1360	150	0.12	10	220	50	50	15
AE-250	2900	1998	190	0.21	12	220	50	59	26
AE-315	2900	3000	240	0.55	15	380	50	69	32
AE-400	1450	4500	120	0.37	18	380	50	70	35
AE-500	1450	11000	254	1.1	20	380	50	75	40
AE-630	1450	19000	380	2.2	25	380	50	83	50
