RCD Roof Fan

Retail Price

Market Price

The frame of cabinet fan is made of aluminium, the panel adapt waterproof shutter; The impeller is designed for backforward impellet, so it has large volume and low noise and not over loading.

Product Category: RCD

Keywords:

Donwload:

Email:

truechen722@gmail.com

Product Inquiry

Structural features

The frame of cabinet fan is made of aluminium, the panel adapt waterproof shutter;
The impeller is designed for backforward impellet, so it has large volume and low noise and not over loading.
Modelrange:no.250-1000,14numbersin total
Air volume range:880-60000m³/h
Total pressure range:57-1254Pa
Application: lt is suitable for factry, warehouse, supermark, office-lock, dwelling and laboratories etc

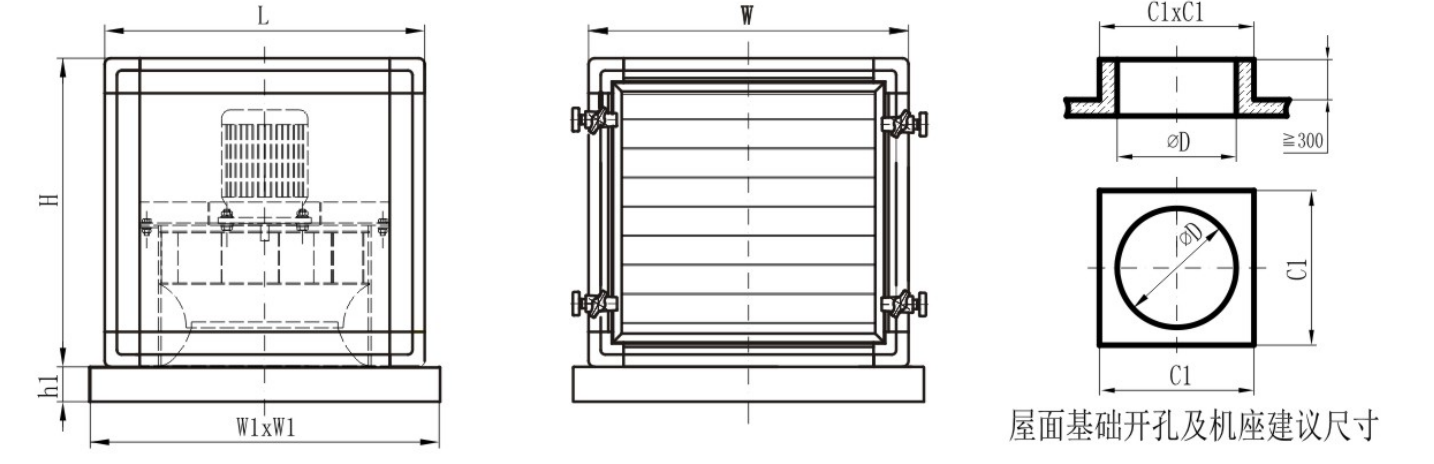

Dimensions

Model	L	w	H	h1	W1	C1	ΦD
RCD-250	450	450	450	60	460	≤430	≧280
RCD-280	500	500	490	60	530	≤500	≧310
RCD-315	550	550	510	60	600	≤570	≧345
RCD-355	550	550	600	60	600	≤570	≧385
RCD-400	630	630	700	60	630	≤600	≧430
RCD-450	680	680	700	60	680	≤650	≧480
RCD-500	750	750	700	60	750	≤720	≧530
RCD-560	820	820	800	60	820	≤790	≧590
RCD-600	870	870	850	60	870	≤840	≧630
RCD-630	900	900	900	60	900	≤870	≧660
RCD-710	1000	1000	1080	77	1000	≤970	≧740
RCD-800	1100	1100	1080	77	1100	≤1070	≧830
RCD-900	1220	1220	1220	80	1250	≤1220	≧930
RCD-1000	1370	1370	1370	80	1400	≤1370	≧1030

PerformanceChart

Model	Rotate Speed (m³/h)	Working Point	Air Volume (m³/h)	Static Pressure (Pa)	Full Pressure (Pa)	Frame size	Noise dB(A)	Power (kw)	Weight (kg)
RCD-250	2900	1	1540	512	542	71M1	63	0.37	44
		2	1760	473	513
		3	1980	454	504
		4	2420	286	361
	1450	1	880	102	112	63M1	54	0.12	42
		2	1100	60	76
		3	1188	53	71
		4	1265	36	57
RCD-280	2900	1	2200	602	637	80M1	66	0.75	55
		2	2365	549	589
		3	2585	512	560
		4	2844	483	542
	1450	1	990	183	190	63M2	55	0.18	45
		2	1100	172	181
		3	1320	149	162
		4	1430	137	152
RCD-315	2900	1	3080	811	855	80M2	69	1.1	67
		2	3520	751	808
		3	3872	644	713
		4	4400	480	570
	1450	1	1540	198	209	71M1	57	0.25	57
		2	1760	176	190
		3	1980	134	152
		4	2145	93	114
RCD-355	2900	1	5555	879	969	90L	73	2.2	91
		2	6160	792	903
		3	7040	683	828
		4	7810	457	635
	1450	1	2085	320	333	71M2	59	0.37	74
		2	2278	302	317
		3	2488	279	297
		4	2688	250	271
RCD-400	2900	1	6600	1204	1254	112M	77	4	122
		2	7700	1109	1178
		3	8800	955	1045
		4	11000	858	998
	1450	1	3300	462	475	80M1	60	0.55	94
		2	4400	311	333
		3	4950	257	285
		4	5500	203	238
RCD-450	1450	1	5500	536	570	90S	64	1.1	121
		2	6160	432	475
		3	6776	366	418
		4	8580	258	342
	960	1	3740	250	266	80M2	58	0.55	120
		2	4400	211	233
		3	4950	162	190
		4	5500	90	124
RCD-500	1450	1	7700	479	523	90L	66	1.5	148
		2	8800	418	475
		3	10450	328	409
		4	12500	292	314
	960	1	5500	235	257	90S	60	0.75	144
		2	6050	163	190
		3	6820	128	162
		4	7700	89	133
RCD-560	1450	1	10120	788	836	69	100L2	3	170
		2	11000	684	741
		3	13200	450	532
		4	16500	205	333
	960	1	6600	370	390	63	90L	1.1	157
		2	7700	333	361
		3	8800	268	304
		4	9900	192	238
RCD-600	1450	1	14667	859	905	74	112M	4	197
		2	16762	503	862
		3	18857	364	561
		4	21476	202	465
	960	1	8381	446	483	65	100L	1.5	181
		2	9429	392	431
		3	10476	234	388
		4	12571	139	259
RCD-630	1450	1	17600	859	950	74	132S	5.5	221
		2	19800	503	618
		3	22550	364	513
		4	25300	202	390
	960	1	9900	446	475	65	100L	1.5	187
		2	11000	392	428
		3	13200	234	285
		4	15400	139	209
RCD-710	1450	1	24200	985	1093	77	160M	11	313
		2	27500	649	789
		3	30250	510	679
		4	33550	407	615
	960	1	15400	441	485	69	132S	3	250
		2	17600	409	466
		3	19800	288	361
		4	22000	138	228
RCD-800	960	1	24200	461	527	75	132M2	5.5	289
		2	26400	415	494
		3	28600	388	480
		4	30800	359	466
	720	1	15400	401	428	67	132S	2.2	272
		2	17600	345	380
		3	19800	241	285
		4	20900	179	228
RCD-900	960	1	30800	646	713	78	160M	7.5	352
		2	35200	569	656
		3	38500	475	580
		4	41800	409	532
	720	1	23100	437	475	69	160M1	4	351
		2	26950	329	380
		3	28600	227	285
		4	30800	123	190
RCD-1000	960	1	45000	818	912	81	180L	15	449
		2	50000	625	741
		3	55000	354	494
		4	60000	213	380
	720	1	33000	425	475	72	160L	7.5	404
		2	38000	313	380
		3	41000	207	285
		4	44000	100	190
