TSK Pipe Fan

Retail Price

Market Price

It is designed for direct connection in-ine with stardard diameter circular ducting; The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading

Product Category: Pipe Fan

Keywords:

Donwload:

Email:

truechen722@gmail.com

Product Inquiry

Structural features

It is designed for direct connection in-ine with stardard diameter circular ducting;
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading
The fan is compact, so it is easy to installation and repair;
The fan is suitable for operation at any angle and deliver exceptional airflow performances
against the high static pressures typically found in ducted ventilation systems.
Model range:no.100-315,7 numbers in total
Airvolumerange:67-1680m³/h
Total pressure range:52-498Pa
Application:lt is suitable for ventilation in factories and buildings

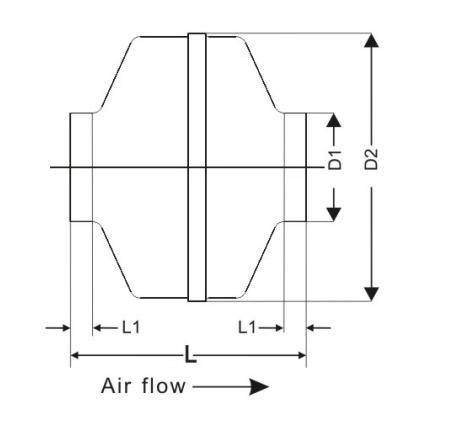

Dimensions

Model	L	L1	φD2	φD1
TSK-100	194	23	243	100
TSK-125	195	27	243	125
TSK-150	222	28	333	150
TSK-160	222	28	333	160
TSK-200	223	25	333	200
TSK-250	206	27	333	250
TSK-315	230	25	401	315

Performance Chart

Model	Rotate Speed (m³/h)	Working Point	Air Volume (m³/h)	Static Pressure (Pa)	Full Pressure (Pa)	Power (kw)	Noise dB(A)	Voltage (V)	Frequency (Hz)	Weight (kg)
TSK-100	1600	1	67	130	134	0.03	47	220	50	3
		2	100	99	106
		3	134	78	92
		4	174	49	72
	2500	1	100	290	298	0.06	52
		2	150	220	237
		3	200	175	205
		4	260	110	161
TSK-125	1600	1	140	122	128	0.04	48	220	50	3.5
		2	175	98	107
		3	210	75	89
		4	245	52	70
	2500	1	200	260	262	0.07	53
		2	250	200	219
		3	300	155	183
		4	350	105	143
TSK-150	1500	1	191	117	122	0.05	50	220	50	5
		2	255	95	105
		3	319	75	90
		4	382	38	60
	2500	1	300	330	343	0.1	54
		2	400	270	294
		3	500	215	252
		4	600	115	168
TSK-160	1600	1	193	126	130	0.07	51	220	50	5.5
		2	252	93	100
		3	310	82	93
		4	351	62	76
	2500	1	330	350	362	0.13	55
		2	430	280	301
		3	530	225	257
		4	600	170	211
TSK-200	1600	1	256	181	184	0.09	52	220	50	6
		2	384	139	146
		3	512	82	94
		4	576	49	65
	2500	1	400	440	448	0.14	56
		2	600	340	357
		3	800	200	230
		4	900	120	158
TSK-250	1600	1	400	182	185	0.09	53	220	50	7
		2	533	120	125
		3	600	76	83
		4	700	43	52
	2500	1	600	410	417	0.17	58
		2	800	270	282
		3	900	170	186
		4	1050	95	116
TSK-315	1700	1	708	246	250	0.13	54	220	50	8
		2	850	200	206
		3	1027	143	151
		4	1190	70	81
	2500	1	1000	490	498	0.22	61
		2	1200	400	411
		3	1450	284	300
		4	1680	140	162
