PEP Anti-corrosion Centrifugal Fan

Retail Price

Market Price

Theimpeller and ring is made of tough polypropylene plastic; Motor supprt is made of stainless steel or sheet steel epox-paint;

Product Category: Centrifugal Fan PEP

Keywords:

Donwload:

Email:

truechen722@gmail.com

Product Inquiry

Structural features

Theimpeller and ring is made of tough polypropylene plastic;
Motor supprt is made of stainless steel or sheet steel epox-paint;
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading.
Modelrange:no.200-360,4 numbersin total
Air volume range:320-5200m³/h
Total pressure range:68-1500Pa
Application: lt is used to exhaust ohemicalair of factory and laboratories

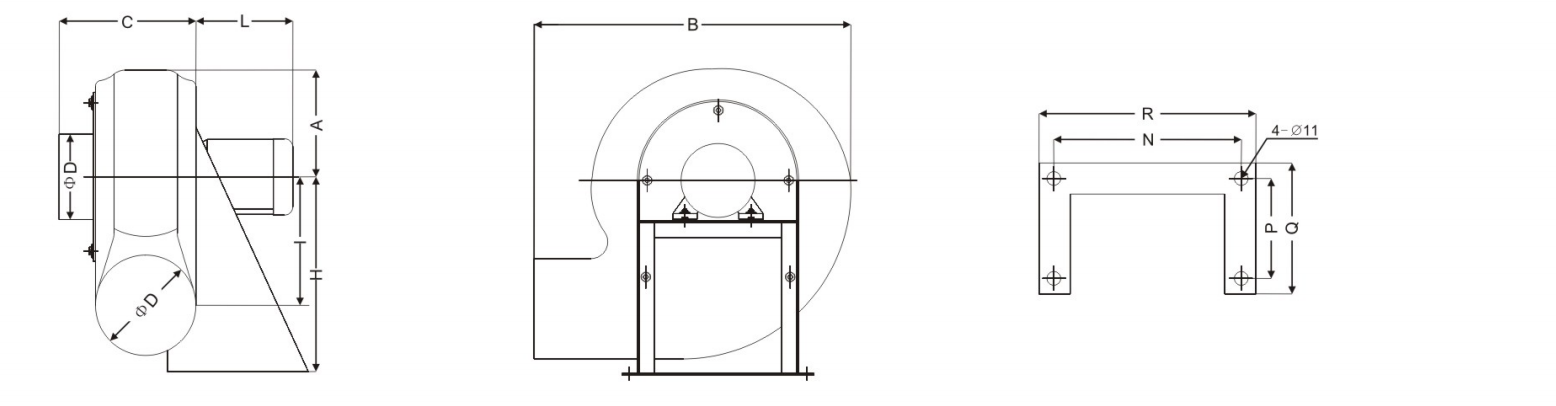

Dimensions

Model	A	B	C	φD	H	I	L	R	N	Q	P	Outlet area
PEP200A2	150	378	190	160	250	140	210	290	255	140	100	0.0201
PEP200A4	150	378	190	160	250	140	190	290	255	140	100	0.0201
PEP250A2	183	478	220	200	310	170	210	290	255	140	100	0.0315
PEP250A4	183	478	220	200	310	170	190	290	255	140	100	0.0315
PEP315A2	240	570	240	250	410	210	245	355	320	230	150	0.0491
PEP315A4	240	570	240	250	410	210	210	355	320	230	150	0.0491
PEP360A2	287	670	265	300	443	335	340	393	350	230	150	0.0707
PEP360A4	287	670	265	300	443	335	250	393	350	230	150	0.0707

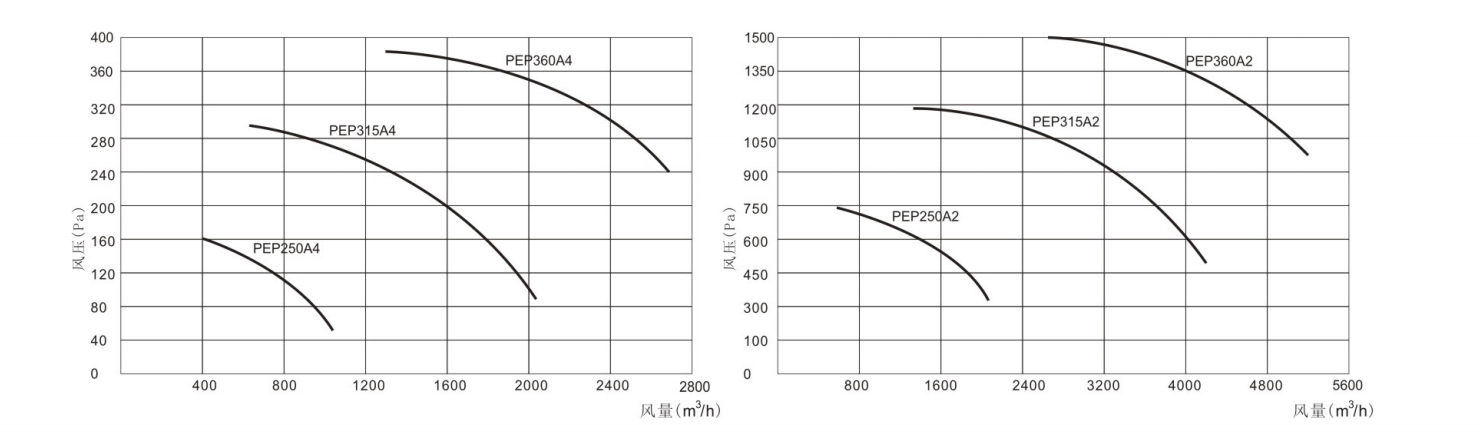

Performance Chart

Model	Rotate Speed (r/ min)	Air Volume (m³/h)	Static Pressure (Pa)	Full Pressure (Pa)	Frame Size	Power (kw)	Voltage (V)	Frequency (Hz)	Noise dB(A)	Weight (kg)
PEP200	1420	320	105	112	63M1	0.12	220/380	50	55	13.5
		470	82	104
		630	59	91
		780	27	70
	2850	560	458	480	63M1	0.18	220/380	50	68	17.5
		900	347	405
		1280	235	352
		1600	28	211
PEP250	1420	400	152	160	63M1	0.12	220/380	50	57	15.5
		680	114	136
		850	61	95
		1000	21	68
	2850	700	720	750	71M1	0.37	220/380	50	71	19.5
		1120	571	630
		1600	430	550
		2100	123	330
PEP315	1420	600	283	290	71M1	0.25	220/380	50	59	20.5
		1000	251	270
		1560	163	210
		2000	29	106
	2850	1450	1140	1180	80M2	1.1	220/380	50	75	25.5
		2400	989	1100
		3200	743	940
		4260	151	500
PEP360	1420	1300	369	385	71M2	0.37	220/380	50	61	25.5
		1850	328	360
		2200	263	308
		2560	179	240
	2850	2800	1427	1500	90L	2.2	380	50	79	32
		3600	1300	1420
		4400	1071	1250
		5200	729	980
