PFP Anti-corrosion Centrifugal Fan

Retail Price

Market Price

The Centrifugal PFP structure is made up by impeller, screwhul, entrance for fan, moto-machine, support, it is made ofimportant pp use 4, 6 rank motor and design is very beautiful.The Centrifugal PFP have advantages such as low noise, light weitht, corrupt resistant, do balance, save power consumption.

Product Category: Centrifugal Fan PFP

Keywords:

Donwload:

Email:

truechen722@gmail.com

Product Inquiry

Structural features

The Centrifugal PFP structure is made up by impeller, screwhul, entrance for fan, moto-machine, support, it is made ofimportant pp use 4, 6 rank motor and design is very beautiful.

The Centrifugal PFP have advantages such as low noise, light weitht, corrupt resistant, do balance, save power consumption.

Modelrange:no.200-800,14numbersin total.

Air volume range:500-17500m³/h

Totalpressure range:225-1757Pa

Application: Centrifugal PFP are suitable to get rit of corrupt gas for ore enterprises, chemical industries, schools hospital, scientific research unit, Not permit to get rid of chemical gas, forexample, fat family and ambrosia family, carbon hydrog compound, ketone the chvome is sour and soon, material mass for pp of gas temperature no hyper50°c.

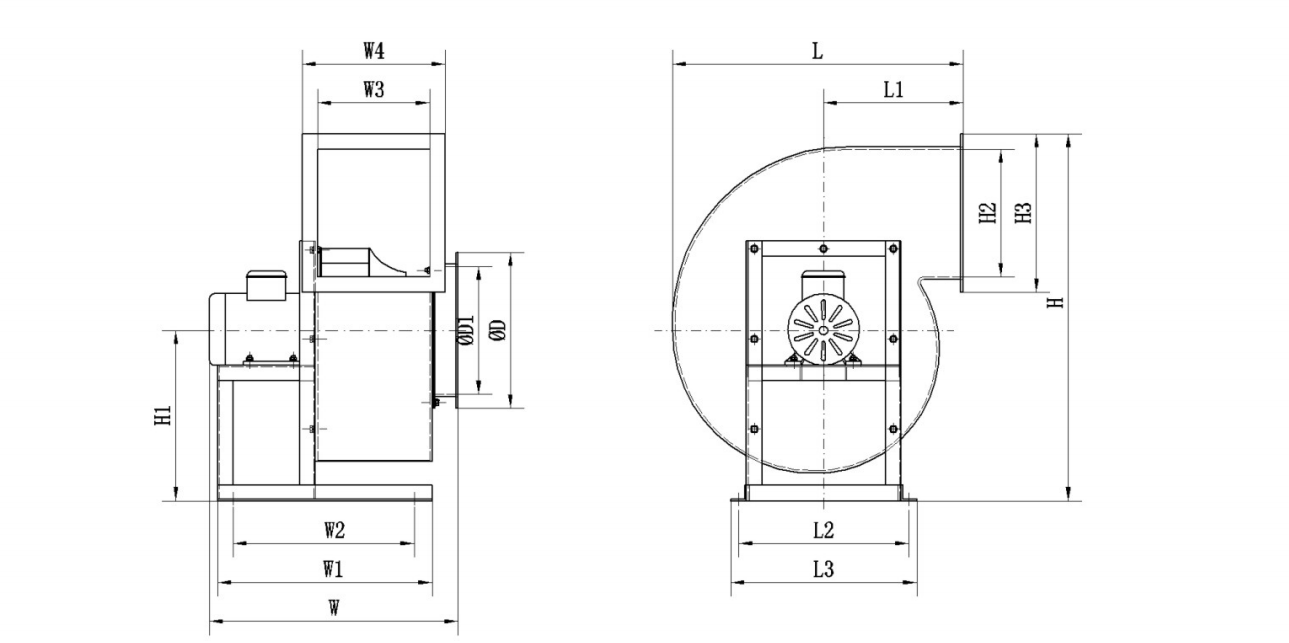

Dimensions

Model	W3	W4	H2	H3	ØD1	ØD	H1	H	W1	W2	L3	L2	L1	W	L
PFP200A	130	200	190	250	130	180	250	545	315	240	280	240	182	447	403
PFP250A	150	220	190	250	150	220	250	545	360	300	320	280	182	450	403
PFP280A	190	280	220	280	170	250	300	541	400	340	350	310	210	530	448
PFP315A	220	300	260	320	190	280	300	635	430	360	370	330	235	585	554
PFP355A	220	300	280	360	220	300	335	761	460	380	410	370	260	652	599
PFP400A	250	330	300	380	250	320	405	862	480	400	410	370	275	611	645
PFP450A	280	380	320	400	280	370	430	910	540	450	440	400	310	700	705
PFP500A	300	400	360	460	320	430	450	1017	590	490	480	440	348	700	759
PFP600A	360	460	410	510	410	500	548	1180	690	590	600	550	450	800	938
PFP700A	430	560	490	610	460	580	610	1343	860	760	680	630	500	1015	1086
PFP800A	500	620	580	690	520	630	670	1505	930	830	740	690	560	1080	1210

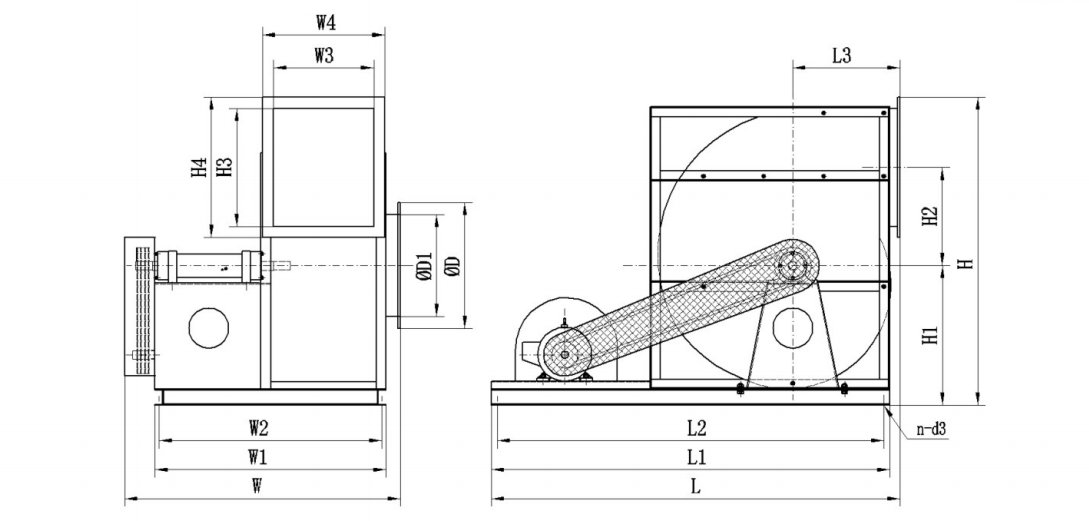

Model	W3	W4	H3	H4	ØD1	ØD	H1	H	W1	W2	L1	L2	W	L	H2	L3
PFP600C	360	460	410	510	410	500	532	1160	1000	960	1330	1290	1148	1414	373	405
PFP700C	430	560	490	610	460	580	597	1330	1020	977	1666	1546	1248	1756	428	410
PFP800C	500	610	590	700	510	630	697	1537	1095	1052	1990	1930	1315	2040	490	535

Performance Chart

Model	Rotate Speed (r/ min)	Working Point	Air Volume (m³/h)	Static Pressure (Pa)	Full Pressure (Pa)	Frame Size	Power (kw)	Voltage (V)	Frequency (Hz)	Noise dB(A)	Weight (kg)
PFP200A	2850	1	500	550	580	630M1	0.18	220/380	50	68	18
		2	870	408	500
		3	1200	245	420
		4	1500	66	340
PFP250A	2850	1	700	715	750	71M1	0.37	220/380	50	71	20
		2	1120	541	630
		3	1600	368	550
		4	2000	65	350
PFP280A	2850	1	1131	949	994	90S	0.75	220/380	50	58	39
		2	1568	817	904
		3	1957	640	776
		4	2356	409	606
PFP315A	2850	1	1300	1240	1300	90L	1.1	220/380	50	75	43
		2	2200	1048	1220
		3	3000	700	1020
		4	3800	187	700
PFP355A	1450	1	950	407	425	80M2	0.37	380	50	61	39
		2	1550	322	370
		3	2150	233	325
		4	2750	75	225
	2850	1	1900	1628	1700	100L	2.2	380	50	79	54
		2	3100	1289	1480
		3	4300	933	1300
		4	5500	300	900
PFP400A	1450	1	1300	501	520	80M2	0.75	220/380	50	64	42
		2	2150	427	480
		3	3000	303	405
		4	3750	160	320
PFP450A	1450	1	1820	680	700	90S	1.1	220/380	50	68	51
		2	3010	591	645
		3	4200	462	567
		4	5250	304	468
PFP500A	1450	1	4000	886	950	90L	1.5	380	50	72	61
		2	5000	761	860
		3	5920	561	700
		4	6500	412	580
PFP600A	1450	1	6000	1063	1140	112M	4	380	50	76	107
		2	8000	904	1040
		3	10000	587	800
		4	12000	344	650
PFP700A	1450	1	14000	946	1150	132M	7.5	380	50	79	170
PFP700A	1450	2	18000	562	900	132M	7.5	380	50	79	170
PFP800A	960	1	11000	753	820	132M2	5.5	380	50	77	200
PFP800A	960	2	13000	647	740	132M2	5.5	380	50	77	200
PFP600C	800	1	3310~6621	324~105	347~198	1.5		380	50	74	202
	1000	2	4138~8276	506~164	542~309	2.2				74	214
	1250	3	5172~10345	790~251	847~483	3				75	224
	1600	4	6621~13241	1295~419	1388~791	5.5				77	282
	1800	5	7448~14897	1639~530	1757~1002	7.5				77	308
PFP700C	800	1	6069~9931	357~171	396~274	2.2		380	50	76	278
	1000	2	7586~12414	558~267	618~428	3				77	288
	1120	3	8497~13903	700~335	776~537	4				77	310
	1250	4	9483~15517	872~418	966~669	5.5				78	346
	1350	5	10241~16759	1017~487	1127~780	7.5				78	372
PFP800C	700	1	6563~10938	508~253	532~319	2.2		380	50	76	316
	800	2	7500~1250	663~331	694~417	3				76	326
	900	3	8438~14063	840~418	879~527	4				77	348
	1000	4	9375~15625	1037~517	1085~651	5.5				77	384
	1120	5	10500~17500	1300~648	1361~817	7.5				78	410
